$3,698.00

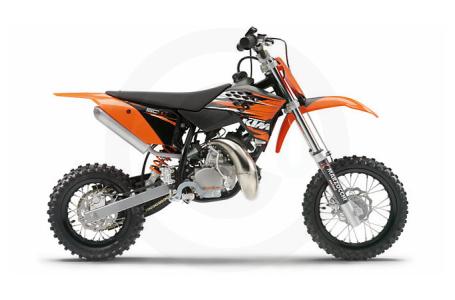

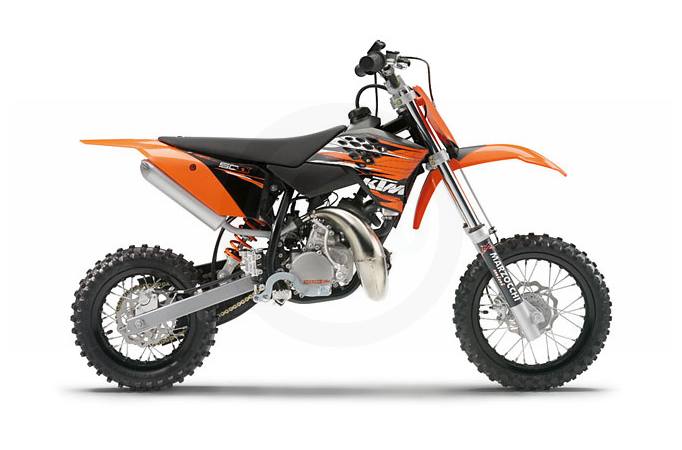

2010 KTM 50 SX
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

The ultimate weapon for budding professional motocross racers.


The 50 SX is the ultimate weapon for budding professional motocross racers. Its cutting-edge two-stroke technology provides unsurpassed power. The bike is easy to control with an automatic clutch for accelerating with ease. With its robust three-shaft engine, which avoids excessive wear on the clutch and water cooling, the 50 SX gives you an important edge over the competition in the heat of battle. Everything is kept under control thanks to the premium quality suspension components with huge amounts of suspension travel and the high-grade disc brakes.

    Engine
    • Engine type: Single cylinder, 2-stroke
    • Displacement: 49 cc
    • Bore x stroke: 39.5 x 40 mm (1.55 x 1.57")
    • Starter: Kickstarter
    • Transmission: Single gear automatic
    • Carburetor: Dell'Orto PHBG 19 BS
    • Engine lubrication: Mixture oil lubrication 1:60
    • Transmission oil: Motorex ATF Super
    • Primary drive: 61:33:00
    • Final drive: 11:40
    • Cooling: Liquid cooled
    • Clutch: Centrifugal clutch (adjustable)
    • Ignition: Seletra 2p D36
    Chassis
    • Frame: Double grinded central double-cradle-type frame
    • Subframe: Steel
    • Handlebar: Pro Taper, Aluminium Ø 22 mm (0.87")
    • Front suspension: Marzocchi Ø 32 mm (1.26")
    • Rear suspension: WP mono shock
    • Suspension travel front/rear: 185/185 mm (7.28"/7.28")
    • Front brake: Disc brake Ø 160 mm (6.3")
    • Rear brake: Disc brake Ø 140 mm (5.51")
    • Rims, front/rear: 1.5 x 12"; 1.6 x 10" Alu
    • Tires, front/rear: 60/100 x 12"; 2.75 x 10"
    • Chain: 1/2 x 3/16"
    • Main silencer: Aluminium
    • Steering head angle: 66°
    • Wheel base: 1032 mm (40.63")
    • Ground clearance (unloaded): 252 mm (9.92")
    • Seat height: 684 mm (26.93 in.)
    • Tank capacity: approx. 2.3 liters (0.61 gal.)
    • Weight (no fuel): approx. 39.8 kg (87.74 lbs)
    Additional Features
    • New ignition cover for improved sealing
    • New inner clutch hub for improved reliability
    • New water pump impeller for improved cooling and engine efficiency
    • New reinforced gearbox shaft with increased gear width for durability

    Specifications

    Engine
    Engine Type Single cylinder, 2-stroke
    Displacement 49 cc
    Bore and Stroke 39.5 x 40 mm (1.55 x 1.57 in.)
    Cooling Liquid cooled
    Ignition Seletra 2p D36
    Chassis
    Front Suspension Marzocchi 32 mm (1.26")
    Front Brakes Disc brake 160 mm (6.3 in.)
    Front Tire 60/100 x 12"
    Rear Suspension WP mono shock
    Rear Brakes Disc brake 140 mm (5.51 in.)
    Rear Tire 2.75 x 10"
    Dimensions
    Dry Weight 39.8 kg (87.74 lbs.)
    Fuel Capacity 2.3 l (0.61 gal)
    Wheelbase 1032 mm (40.63 in.)
    Ground Clearance 252 mm (9.92")
    Seat Height 684 mm (26.93")
    Transmission
    Transmission Single gear automatic
    Final Drive 11:40
    General
    Warranty 1 month

    Compare Models

    		 Print








    Year 2010
    Manufacturer KTM
    Model 50 SX
    Style Youth
    MSRP* $3,698.00
    Chassis
    Front Suspension Marzocchi 32 mm (1.26")
    Front Brakes Disc brake 160 mm (6.3 in.)
    Front Tire 60/100 x 12"
    Rear Suspension WP mono shock
    Rear Brakes Disc brake 140 mm (5.51 in.)
    Rear Tire 2.75 x 10"
    Dimensions
    Dry Weight 39.8 kg (87.74 lbs.)
    Fuel Capacity 2.3 l (0.61 gal)
    Wheelbase 1032 mm (40.63 in.)
    Ground Clearance 252 mm (9.92")
    Seat Height 684 mm (26.93")
    Trail
    Rake
    Engine
    Engine Type Single cylinder, 2-stroke
    Displacement 49 cc
    Bore and Stroke 39.5 x 40 mm (1.55 x 1.57 in.)
    Cooling Liquid cooled
    Compression Ratio
    Fuel System
    Ignition Seletra 2p D36
    General
    Colors
    Warranty 1 month
    Transmission
    Transmission Single gear automatic
    Final Drive 11:40
