New Equipment » KTM » 50 SX Mini
Model Quick Search

$3,298.00

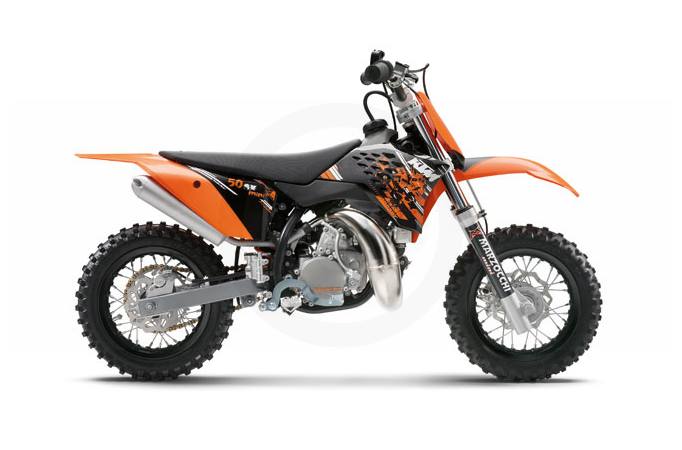

2010 KTM 50 SX Mini
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

Only the best power, performance and appearance are good enough for first place: the KTM 50 SX Mini – a winner for every ace from the ages of six to nine. The seat height is adjustable from 650 mm upwards, with long suspension travel, disk brakes at the front and rear, a chain guard, as well as the best power output available in this class.

    Engine
    • Engine type: Single cylinder, 2-stroke
    • Displacement: 49 cc
    • Bore x stroke: 39.5 x 40 mm (1.55 x 1.57")
    • Starter: Kickstarter
    • Transmission: Single gear automatic
    • Carburetor: Dell'Orto PHVA 12 XS
    • Engine lubrication: Separate Lubrication
    • Primary drive: 61:33:00
    • Final drive: 10:42
    • Cooling: Liquid cooled
    • Clutch: Centrifugal clutch (adjustable)
    • Ignition: Seletra 2p D36
    Chassis
    • Frame: Double grinded central-double-cradle-type frame
    • Subframe: Steel
    • Handlebar: Pro Taper, Aluminium 22 mm (0.87")
    • Front suspension: Marzocchi 32 mm (1.26")
    • Rear suspension: WP mono shock
    • Suspension travel front/rear: 110 / 171 mm (4.33" / 6.73")
    • Front brake: Disc brake Ø 160 mm (6.3")
    • Rear brake: Disc brake Ø 140 mm (5.51")
    • Rims, front/rear: 1.6 x 10"; 1.6 x 10" Alu
    • Tires, front/rear: 2.50 x 10"; 2.75 x 10"
    • Chain: 1/2 x 3/16"
    • Main silencer: Aluminium
    • Steering head angle: 67.4°
    • Wheel base: 914 mm (35.98")
    • Ground clearance (unloaded): 184 mm (7.24")
    • Seat height: 558 mm (22")
    • Tank capacity: approx. 2 liters (0.53 gal)
    • Weight (no fuel): approx. 37.8 kg (83.33 lbs)
    Additional Features
    • New ignition cover for improved sealing
    • New inner clutch hub for improved reliability
    • New water pump impeller for improved cooling and engine efficiency
    • New reinforced gearbox shaft with increased gear width for durability

    Specifications

    Engine
    Engine Type Single cylinder, 2-stroke
    Displacement 49 cc
    Bore and Stroke 39.5 x 40 mm (1.55 x 1.57 in.)
    Cooling Liquid cooled
    Ignition Seletra 2p D36
    Chassis
    Front Suspension Marzocchi 32 mm (1.26 in.)
    Front Brakes Disc brake Ø 160 mm (6.3")
    Front Tire 2.50 x 10"
    Rear Suspension WP mono shock
    Rear Brakes Disc brake Ø 140 mm (5.51")
    Rear Tire 2.75 x 10"
    Dimensions
    Dry Weight approx. 37.8 kg (83.33 lbs)
    Fuel Capacity approx. 2 liters (0.53 gal)
    Wheelbase 914 mm (35.98 in.)
    Ground Clearance 184 mm (7.24")
    Seat Height 558 mm (22")
    Transmission
    Transmission Single gear automatic
    Final Drive 10:42
    General
    Warranty 1 Month

    Compare Models

    		 Print








    Year 2010
    Manufacturer KTM
    Model 50 SX Mini
    Style Youth
    MSRP* $3,298.00
    Chassis
    Front Suspension Marzocchi 32 mm (1.26 in.)
    Front Brakes Disc brake Ø 160 mm (6.3")
    Front Tire 2.50 x 10"
    Rear Suspension WP mono shock
    Rear Brakes Disc brake Ø 140 mm (5.51")
    Rear Tire 2.75 x 10"
    Dimensions
    Dry Weight approx. 37.8 kg (83.33 lbs)
    Fuel Capacity approx. 2 liters (0.53 gal)
    Wheelbase 914 mm (35.98 in.)
    Ground Clearance 184 mm (7.24")
    Seat Height 558 mm (22")
    Trail
    Rake
    Engine
    Engine Type Single cylinder, 2-stroke
    Displacement 49 cc
    Bore and Stroke 39.5 x 40 mm (1.55 x 1.57 in.)
    Cooling Liquid cooled
    Compression Ratio
    Fuel System
    Ignition Seletra 2p D36
    General
    Colors
    Warranty 1 Month
    Transmission
    Transmission Single gear automatic
    Final Drive 10:42
