$4,398.00

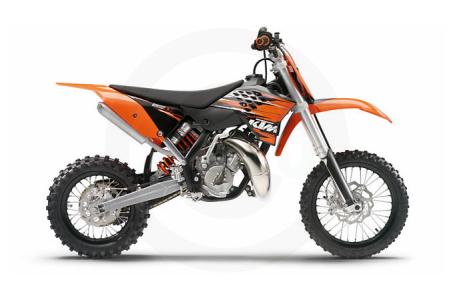

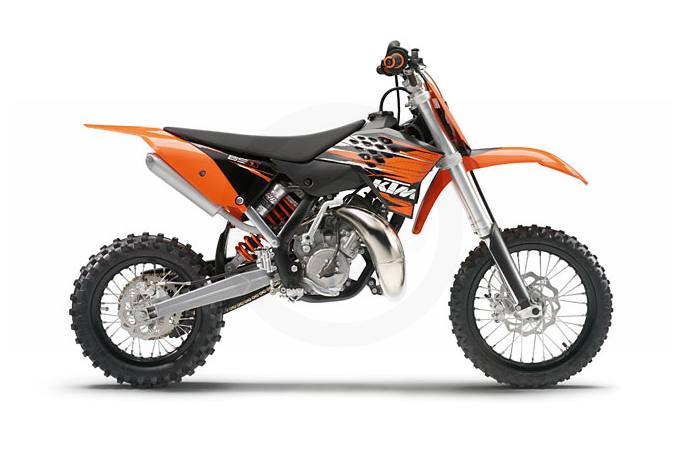

2010 KTM 65 SX


Request a Quote Financing Calculator Request a Brochure Financing Form

Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

Print Brochure

A small engine with cutting-edge technology – the KTM 65 SX gives you the confidence to take on larger bikes. You will be amazed at how perfectly it follows the line you want to take, how sensitively it responds to changes of direction and how well it grips the surface. The revolutionary engine design with the crankshaft positioned close to the center of gravity not only allows perfect handling of your 65 SX, it also helps optimize the intake flow in the crankcase. The patented KTM pressure-controlled exhaust valve (PCEV) and re-engineered outlet slide give you the edge in terms of power. The frame is modeled on the full-size bikes. As with the larger SX models, premium quality forged parts are robot-welded with high-grade chromoly steel pipes, guaranteeing first-rate quality. The WP mono-shock and the 35mm Marzocchi USD front fork add to the professional performance. The suspension is adjustable for individual riders and changing track conditions. Countless world championship winning KTM bikes were used as
prototypes for the bodywork, seat line, footrests and handlebars of the 65 SX – the first choice for future champions.

  • Engine: Single cylinder, 2-stroke
  • Displacement: 64.9 cc
  • Weight: 55.4 kg (122.13 lbs.)
Engine
  • Engine type: Single cylinder, 2-stroke
  • Displacement: 64.9 cc
  • Bore x stroke: 45 x 40.8 mm (1.77 x 1.61")
  • Starter: Kickstarter
  • Transmission: 6 gears
  • Carburetor: Mikuni TM 24
  • Control: Exhaust control PCEV
  • Engine lubrication: Mixture oil lubrication 1:60
  • Transmission oil: Motorex, SAE 15W-50
  • Primary drive: 1.010416667
  • Final drive: 14:50
  • Cooling: Liquid cooling
  • Clutch: Wet multi-disc clutch, operated hydraulically
  • Ignition: AET digital
Chassis
  • Frame: Double grinded central double-cradle-type frame
  • Subframe: Aluminium
  • Handlebar: Pro Taper, Aluminium Ø 22 mm (0.87")
  • Front suspension: Marzocchi USD Ø 35 mm (1.38")
  • Rear suspension: WP mono shock
  • Suspension travel front/rear: 220/270 mm (8.66"/10.63")
  • Front brake: Disc brake Ø 198 mm (7.80")
  • Rear brake: Disc brake Ø 160 mm (6.3")
  • Rims, front/rear: 1.6 x 14"; 1.6 x 12" Alu
  • Tires, front/rear: 60/100 x 14"; 80/100 x 12"
  • Chain: 1/2 x 1/4"
  • Main silencer: Aluminium
  • Steering head angle: 64.5°
  • Wheel base: 1137 mm (44.76")
  • Ground clearance (unloaded): 280 mm (11.02")
  • Seat height: 750 mm (28.54")
  • Tank capacity: approx. 3.5 liters (0.93 gal)
  • Weight (no fuel): approx. 55.4 kg (122.13 lbs)
New Features
  • New engine case design for improved reliability
  • New Power Valve design with a machined slide for improved reliability
  • New ignition cover for improved sealing

Specifications

Engine
Engine Type Single cylinder, 2-stroke
Displacement 64.9 cc
Bore and Stroke 45 x 40.8 mm (1.77 x 1.61 in.)
Cooling Liquid cooling
Ignition AET digital
Chassis
Front Suspension Marzocchi USD Ø 35 mm (1.38")
Front Brakes Disc brake 198 mm (7.80 in.)
Front Tire 60/100 x 14 in.
Rear Suspension WP mono shock
Rear Brakes Disc brake 160 mm (6.3 in.)
Rear Tire 80/100 x 12 in.
Dimensions
Dry Weight 55.4 kg (122.13 lbs.)
Fuel Capacity 3.5 l (0.93 gal.)
Wheelbase 1137 mm (44.76 in.)
Ground Clearance 280 mm (11.02 in.)
Seat Height 750 mm (28.54 in.)
Rake 64.5 deg.
Transmission
Transmission 6 gears
Final Drive 14:50
General
Warranty 1 Month

Compare Models

Print








Year 2010
Manufacturer KTM
Model 65 SX
Style Youth
MSRP* $4,398.00
Chassis
Front Suspension Marzocchi USD Ø 35 mm (1.38")
Front Brakes Disc brake 198 mm (7.80 in.)
Front Tire 60/100 x 14 in.
Rear Suspension WP mono shock
Rear Brakes Disc brake 160 mm (6.3 in.)
Rear Tire 80/100 x 12 in.
Dimensions
Dry Weight 55.4 kg (122.13 lbs.)
Fuel Capacity 3.5 l (0.93 gal.)
Wheelbase 1137 mm (44.76 in.)
Ground Clearance 280 mm (11.02 in.)
Seat Height 750 mm (28.54 in.)
Trail
Rake 64.5 deg.
Engine
Engine Type Single cylinder, 2-stroke
Displacement 64.9 cc
Bore and Stroke 45 x 40.8 mm (1.77 x 1.61 in.)
Cooling Liquid cooling
Compression Ratio
Fuel System
Ignition AET digital
General
Colors
Warranty 1 Month
Transmission
Transmission 6 gears
Final Drive 14:50

Current Promotions

There are currently no promotions available for this product.
