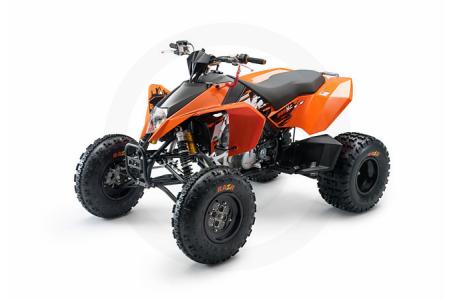

2009 KTM 450 XC
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

A winner through and through.


Minimum weight, maximum power, perfect handling and peak performance in the hardest of races – these are properties which distinguish a real cross-country champion. The KTM 450 XC has been developed for precisely this field and is aimed 100% at a single goal: podium places!

    Engine
    • Engine type: Single cylinder, 4-stroke, SOHC, 4-Valve, liquid cooled
    • Displacement: 447.92 cc
    • Bore x stroke: 89 x 72 mm
    • Compression ratio: 11:1
    • Starter: Electric starter / 4 Ah
    • Transmission: 5-speed XC semi-close-ratio + reverse
    • Carburetor: Keihin FCR-MX 39
    • Lubrication: Dry sump, pressure lubrication with 2 Eaton pumps
    • Engine lubrication: 10W50
    • Primary drive: 31:78
    • Final drive: 14:38
    • Cooling: Liquid cooled
    • Clutch: Wet multi-disc clutch, operated hydraulically
    • Ignition: Kokusan digital
    Chassis
    • Frame: Chromoly
    • Subframe: Aluminum 7020
    • Handlebar: Magura tapered aluminum, Ø 28 mm
    • Front suspension: Öhlins fully adjustable, twin A-arms
    • Rear suspension: Öhlins PDS mono-shock, fully adjustable, swingarm
    • Suspension travel, front / rear: 257 / 265 mm (10.2 / 10.4")
    • Front brake: 180 mm (7.08") floating WAVE discs, 4-piston fixed caliper x 2
    • Rear brake: 200 mm (7.87") disc, single piston floating caliper
    • Rims, front / rear: 5.0"x10.0"; 8.0"x9.0" Douglas
    • Tires, front / rear: 21"x7"-10"; 20"x11"-9" MAXXIS Razor
    • Chain: 520 X-ring chain 5/8 x 1/4"
    • Main silencer: Aluminum XC w / Spark Arrestor
    • Wheel base: 1280 mm (50.39")
    • Ground clearance (unloaded): 290 mm (11.42")
    • Seat height: 820 mm (32.2")
    • Fuel capacity (approx.): 13.4 liters (3.54 gal)
    • Weight - no fuel (approx.): 163 kg (351.1 lbs)

    Specifications

    Engine
    Engine Type 4-stroke, SOHC, 4-Valve
    Displacement 447.92 cc
    Bore x Stroke 89 x 72 mm
    Cylinders Single
    Engine Cooling Liquid
    Fuel System Keihin FCR-MX 39
    Starting System Electric starter / 4 Ah; Ignition: Kokusan digital
    Chassis
    Front Suspension Öhlins fully adjustable, twin A-arms
    Front Travel 10.2 in. (257 mm)
    Front Brake Type 7.08 in. (180 mm) floating WAVE discs, 4-piston fixed caliper x 2
    Front Tires 21 x7-10 in. MAXXIS Razor
    Rear Suspension Öhlins PDS mono-shock, fully adjustable, swingarm
    Rear Travel 10.4 in. (265 mm)
    Rear Brake Type 7.87 in. (200 mm) disc, single piston floating caliper
    Rear Tires 20 x11-9 in. MAXXIS Razor
    Frame Chromoly; Subframe: Aluminum 7020
    Dimensions/Capacities
    Dry Weight 351.1 lbs (163 kg)
    Fuel Capacity 3.54 gal (13.4 l)
    Ground Clearance Unloaded: 11.42 in. (290 mm)
    Wheelbase 50.39 in. (1280 mm)
    Drive Train
    Final Drive 520 X-ring chain 5/8 x 1/4 in.
    Transmission 5-speed XC semi-close-ratio + reverse

    Compare Models

    		 Print








    Year 2009
    Manufacturer KTM
    Model 450 XC
    Style Sport
    Chassis
    Front Suspension Öhlins fully adjustable, twin A-arms
    Front Travel 10.2 in. (257 mm)
    Front Brake Type 7.08 in. (180 mm) floating WAVE discs, 4-piston fixed caliper x 2
    Front Tires 21 x7-10 in. MAXXIS Razor
    Rear Suspension Öhlins PDS mono-shock, fully adjustable, swingarm
    Rear Travel 10.4 in. (265 mm)
    Rear Brake Type 7.87 in. (200 mm) disc, single piston floating caliper
    Rear Tires 20 x11-9 in. MAXXIS Razor
    Frame Chromoly; Subframe: Aluminum 7020
    Dimensions/Capacities
    Dry Weight 351.1 lbs (163 kg)
    Front Rack Capacity
    Rear Rack Capacity
    Towing Capacity
    Fuel Capacity 3.54 gal (13.4 l)
    Ground Clearance Unloaded: 11.42 in. (290 mm)
    Machine Dimensions (LxWxH)
    Wheelbase 50.39 in. (1280 mm)
    Drive Train
    Drive Train
    Final Drive 520 X-ring chain 5/8 x 1/4 in.
    Transmission 5-speed XC semi-close-ratio + reverse
    Engine
    Engine Type 4-stroke, SOHC, 4-Valve
    Displacement 447.92 cc
    Bore x Stroke 89 x 72 mm
    Cylinders Single
    Engine Cooling Liquid
    Fuel System Keihin FCR-MX 39
    Starting System Electric starter / 4 Ah; Ignition: Kokusan digital
    Alternator
    General
    Speedometer
    Tachometer
    Odometer
    Lighting
    Colors
    Warranty
