$6,995.00

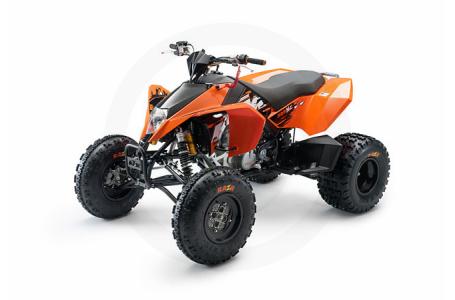

2009 KTM 525 XC

Now until September 30, 2010
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

Pure Enduro power.


Born into superiority. This sentence applies to no other ATV better than to the 525 XC. The KTM Enduro flagship sets new standards in the cross-country sector. With extremely high performance and perfect handling, the 525 XC is the ideal candidate for demanding trails or dune adventures. Brutal power and standard-fit racing equipment ensure that this ATV takes the lead in the favour of the quad fan from the start.

    Engine
    • Engine type: Single cylinder, 4-stroke, SOHC, 4-Valve, liquid cooled
    • Displacement: 510.4 cc
    • Bore x stroke: 95 x 72 mm
    • Compression ratio: 11:1
    • Starter: Electric starter / 4 Ah
    • Transmission: 5-speed XC semi-close-ratio + reverse
    • Carburetor: Keihin FCR-MX 39
    • Lubrication: Dry sump, pressure lubrication with 2 Eaton pumps
    • Engine lubrication: 10W50
    • Primary drive: 31:78
    • Final drive: 14:38
    • Cooling: Liquid cooled
    • Clutch: Wet multi-disc clutch, operated hydraulically
    • Ignition: Kokusan digital
    Chassis
    • Frame: Chromoly
    • Subframe: Aluminum 7020
    • Handlebar: Magura tapered aluminum, Ø 28 mm
    • Front suspension: Öhlins fully adjustable, twin A-arms
    • Rear suspension: Öhlins PDS mono-shock, fully adjustable, swingarm
    • Suspension travel front / rear: 257 / 265 mm (10.2 / 10.4")
    • Front brake: 180 mm (7.08") floating WAVE discs, 4-piston fixed caliper x 2
    • Rear brake: 200 mm (7.87") disc, single piston floating caliper
    • Rims, front / rear: 5.0"x10.0"; 8.0"x9.0" Douglas
    • Tires, front / rear: 21"x7"-10"; 20"x11"-9" MAXXIS Razor
    • Chain: 520 X-ring chain 5/8 x 1/4"
    • Main silencer: Aluminum XC w / Spark Arrestor
    • Wheel base: 1280 mm (50.39")
    • Ground clearance (unloaded): 290 mm (11.42")
    • Seat height: 820 mm (32.2")
    • Fuel capacity (approx.): 13.4 liters (3.54 gal)
    • Weight -no fuel (approx.): 163 kg (351.1 lbs)

    Specifications

    Engine
    Engine Type 4-stroke, SOHC, 4-Valve
    Displacement 510.4 cc
    Bore x Stroke 95 x 72 mm
    Cylinders Single
    Engine Cooling Liquid
    Fuel System Keihin FCR-MX 39
    Starting System Electric starter / 4 Ah; Ignition: Kokusan digital
    Chassis
    Front Suspension Öhlins fully adjustable, twin A-arms
    Front Travel 10.2 in. (257 mm)
    Front Brake Type 7.08 in. (180 mm) floating WAVE discs, 4-piston fixed caliper x 2
    Front Tires 21 x7-10 in. MAXXIS Razor
    Rear Travel 10.4 in. (265 mm)
    Rear Suspension Öhlins PDS mono-shock, fully adjustable, swingarm
    Rear Brake Type 7.87 in. (200 mm) disc, single piston floating caliper
    Rear Tires 20 x11-9 in. MAXXIS Razor
    Frame Chromoly; Subframe: Aluminum 7020
    Dimensions/Capacities
    Dry Weight 351.1 lbs (163 kg)
    Fuel Capacity 3.54 gal (13.4 l)
    Ground Clearance Unloaded: 11.42 in. (290 mm)
    Wheelbase 50.39 in. (1280 mm)
    Drive Train
    Final Drive 520 X-ring chain 5/8 x 1/4 in.
    Transmission 5-speed XC semi-close-ratio + reverse

    Compare Models

    		 Print








    Year 2009
    Manufacturer KTM
    Model 525 XC
    Style Sport
    Chassis
    Front Suspension Öhlins fully adjustable, twin A-arms
    Front Travel 10.2 in. (257 mm)
    Front Brake Type 7.08 in. (180 mm) floating WAVE discs, 4-piston fixed caliper x 2
    Front Tires 21 x7-10 in. MAXXIS Razor
    Rear Suspension Öhlins PDS mono-shock, fully adjustable, swingarm
    Rear Travel 10.4 in. (265 mm)
    Rear Brake Type 7.87 in. (200 mm) disc, single piston floating caliper
    Rear Tires 20 x11-9 in. MAXXIS Razor
    Frame Chromoly; Subframe: Aluminum 7020
    Dimensions/Capacities
    Dry Weight 351.1 lbs (163 kg)
    Front Rack Capacity
    Rear Rack Capacity
    Towing Capacity
    Fuel Capacity 3.54 gal (13.4 l)
    Ground Clearance Unloaded: 11.42 in. (290 mm)
    Machine Dimensions (LxWxH)
    Wheelbase 50.39 in. (1280 mm)
    Drive Train
    Drive Train
    Final Drive 520 X-ring chain 5/8 x 1/4 in.
    Transmission 5-speed XC semi-close-ratio + reverse
    Engine
    Engine Type 4-stroke, SOHC, 4-Valve
    Displacement 510.4 cc
    Bore x Stroke 95 x 72 mm
    Cylinders Single
    Engine Cooling Liquid
    Fuel System Keihin FCR-MX 39
    Starting System Electric starter / 4 Ah; Ignition: Kokusan digital
    Alternator
    General
    Speedometer
    Tachometer
    Odometer
    Lighting
    Colors
    Warranty

    Current Promotions

    There are currently no promotions available for this product.
