$5,498.00

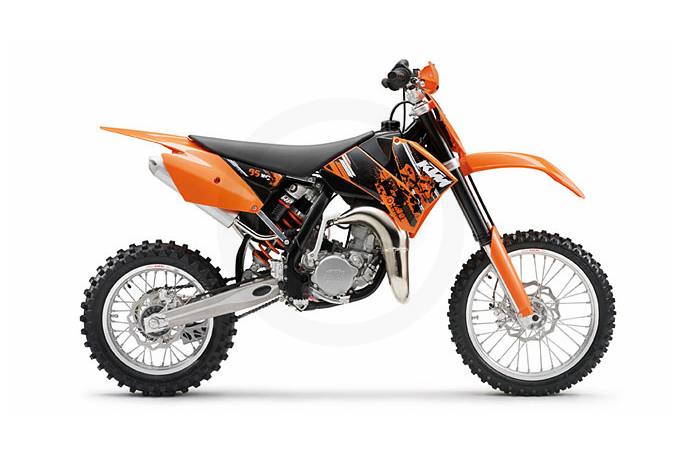

2009 KTM 105 SX
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    Engine
    • Engine type: Single cylinder, 2-stroke
    • Displacement: 103.96 cc
    • Bore x stroke: 52 x 48.95 mm (2.05 x 1.93")
    • Starter: Kickstarter
    • Transmission: 6 gears
    • Carburetor: Keihin PWK 28
    • Lubrication: Mixture oil lubrication 1:40
    • Transmission oil: 15W50
    • Primary drive: 19:66
    • Final drive: 14:49
    • Cooling: Liquid cooled
    • Clutch: Wet multi-disc clutch, operated hydraulically
    • Ignition: Moric digital 2M1
    Chassis
    • Frame: Central double-cradle-type 25CrMo4
    • Subframe: Aluminium
    • Handlebar: Aluminium Ø 28/22 mm (1.10/0.87")
    • Front suspension: WP USD Ø 43 mm (1.69")
    • Rear suspension: WP monoshock PDS
    • Suspension travel front/rear: 275 / 300 mm (10.83 / 11.81")
    • Brakes, front/rear: Disc brakes 220 / 200 mm (8.66 / 7.87")
    • Rims, front/rear: 1.60 x 19"; 1.85 x 16"
    • Tires, front/rear: 70/100-19"; 90/100-16"
    • Chain: 1/2 x 5/16"
    • Main silencer: Aluminium
    • Steering head angle: 66°
    • Wheel base: 1290±10 mm (50.79±0.39")
    • Ground clearance (unloaded): 415 mm (16.34")
    • Seat height: 900 mm (35.43")
    • Tank capacity: approx. 5 liters (1.32 gal)
    • Weight (no fuel): approx. 68 kg (149.91 lbs)

    Specifications

    Engine
    Engine Type Single cylinder, 2-stroke
    Displacement 103.96 cc
    Bore and Stroke 52 x 48.95 mm (2.05 x 1.93 in.)
    Cooling Liquid cooled
    Fuel System Keihin PWK 28
    Ignition Moric digital 2M1
    Chassis
    Front Suspension WP USD Ø 1.69 in. (43 mm); Travel: 10.83 in. (275 mm)
    Front Brakes Disc brakes 8.66 in. (220 mm)
    Front Tire 70/100-19 in.
    Rear Suspension WP monoshock PDS; Travel: 11.81 in. (300 mm)
    Rear Brakes Disc brakes 7.87 in. (200 mm)
    Rear Tire 90/100-16 in.
    Dimensions
    Dry Weight 149.91 lbs (68 kg)
    Fuel Capacity 1.32 gal (5 l)
    Wheelbase 50.79 ± 0.39 in. (1290 ± 10 mm)
    Ground Clearance 16.34 in. (415 mm)
    Seat Height 35.43 in. (900 mm)
    Rake 66°
    Transmission
    Transmission 6 gears
    Final Drive 14:49

    Compare Models

    		 Print








    Year 2009
    Manufacturer KTM
    Model 105 SX
    Style Off-Road
    MSRP* $5,498.00
    Chassis
    Front Suspension WP USD Ø 1.69 in. (43 mm); Travel: 10.83 in. (275 mm)
    Front Brakes Disc brakes 8.66 in. (220 mm)
    Front Tire 70/100-19 in.
    Rear Suspension WP monoshock PDS; Travel: 11.81 in. (300 mm)
    Rear Brakes Disc brakes 7.87 in. (200 mm)
    Rear Tire 90/100-16 in.
    Dimensions
    Dry Weight 149.91 lbs (68 kg)
    Fuel Capacity 1.32 gal (5 l)
    Wheelbase 50.79 ± 0.39 in. (1290 ± 10 mm)
    Ground Clearance 16.34 in. (415 mm)
    Seat Height 35.43 in. (900 mm)
    Trail
    Rake 66°
    Engine
    Engine Type Single cylinder, 2-stroke
    Displacement 103.96 cc
    Bore and Stroke 52 x 48.95 mm (2.05 x 1.93 in.)
    Cooling Liquid cooled
    Compression Ratio
    Fuel System Keihin PWK 28
    Ignition Moric digital 2M1
    General
    Colors
    Warranty
    Transmission
    Transmission 6 gears
    Final Drive 14:49
